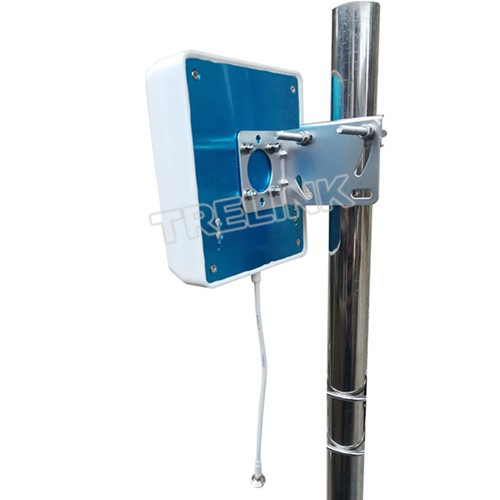

Wide Band Pole Mount Panel Antenna 698-2700MHz 8dBi

Model No.:TLPA-627-8-90VM

Place Of Origin: China

Brand Name: TreLink

The TreLink 698-2700 MHz Outdoor Directional  Antenna provides broad band and high performance. It is designed primarily for DAS (Distributed Antenna Systems),AWS (Advanced wireless services) and PCS (Personal communications service) band applications,In-building wireless networks,LTE networks and IEEE 802.11b/g applications. It can be used outdoors as a building antenna for direct access to cell tower signals for indoor amplifiers and boosters. This Panel DAS Antenna comes standard with a N Jack connectors , and can easily be pole mounted with the attached mounting brackets. The radome is made of an ABS plastic and completely weatherproof . For more detail, please contact our TreLink Sales team !

  • PRODUCT DETAIL
  • APPLICATION
  • ADVANTAGE
Electrical Specifications
ModelTLPA-627-8-90VM
Frequency Range698-960 MHz1710-2170MHz2300-2700 MHz
Gain7 dBi9 dBi8 dBi
VSWR<1.8:1
PolarizationVertical
F/B Ratio>10 dB
 Horizontal Beamwidth90°78°65°
Vertical Beamwidth55°53°52°
Input Impedance50 Ω
Maximum Power100 W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN female
Antenna Dimention165*155*45 mm
Weight0.5 kg /1.1 lb
Radome MaterialWeatherproof ABS
Mounting methodFit with nut
Working Temperature-40~+60℃

`

APPLICATION

Applications:

*698-2700MHz Band

* Premium line for TDD/FDD-LTE

*LTE networks

* DAS (Distributed Antenna Systems)

*IEEE 802.11b/g applications

*AWS (Advanced wireless services)  and PCS (Personal communications service) band

*In-building Wireless Networks

ADVANTAGE

Advantage:

*Broad band, Cover 700 to 2700MHz common system

*Compact size, light weight and unobtrusive

*UV stable ABS radome

*Easy To Mount

*RoHS compliant
